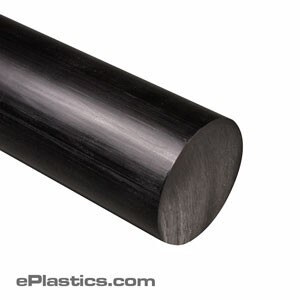

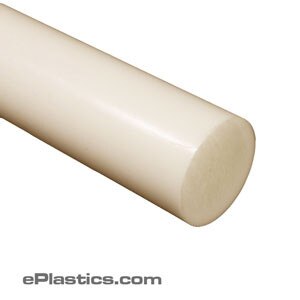

ABS Rod

ABS (Acrylonitrile-Butadiene-Styrene) is commonly used in thermoforming, vacuum forming, drilling, cutting-to-size, CNC cutting, routing, pressure forming, shearing, sawing, cold stamping, ultrasonic welding, thermo welding, and chemical bonding. .

Absylux® ABS is a low cost engineering plastic that is easy to machine and fabricate. ABS Engineering Rod is an ideal material for structural applications when impact resistance, strength, and stiffness are required. It is widely used for machining pre-production prototypes since it has excellent dimensional stability and is easy to paint and glue. ABS Engineering Rod is sold and priced by the foot. Stock Maximum Single Rod Length: 8ft

The following physical property information is based on typical values of the base acrylonitrile-butadiene- styrene resin:

Property	Units	Test	Unfilled
Flexural Modulus	psi	ASTM D790	314,000
Flexural Strength @yield	psi	ASTM D790	9,700
Hardness	R Scale	ASTM D785	R105
Izod Impact Strength Notched @ –22°F	ft•lbs/in	ASTM D256	11
Izod Impact Strength Notched @73°F	ft•lbs/in	ASTM D256	16
Tensile Modulus	psi	ASTM D638	302,000
Tensile Strength @yield	psi	ASTM D638	5,800
