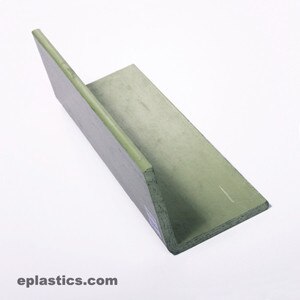

STANDARD NON FIRE RETARDANT POLYESTER: A general-purpose isophthalic polyester resin system with a UV inhibitor, offering good corrosion resistance. Color: Olive Green
525 FR/UV Grade

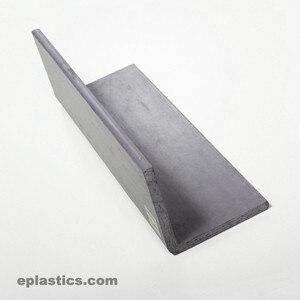

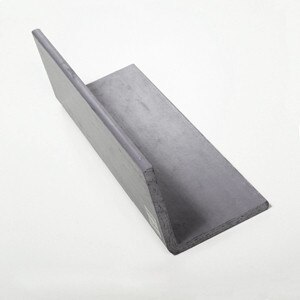

FIRE RETARDANT POLYESTER: A general-purpose fire-retardant isophthalic resin system with a UV inhibitor, offering good corrosion resistance. Colors: Dark Gray and Yellow (certain handrail & fixed-ladder components in yellow)
625 VE Grade
VINYLESTER FIRE RETARDANT: A premium vinylester resin system with a UV inhibitor. It’s fire retardant and highly corrosion resistant.Colors: Beige and Yellow
Creels of unidirectional roving provide longitudinal tensile strength or the strength along the length of the profile. Rolls of continuous filament mat, woven roving, or stitched fabric provide the profile with its transverse properties or its strength across the width of the profile. All reinforcements are first fed through preforming guides that will begin to shape the raw glass fibers in to the finished profile. The glass is then pulled into a resin bath that saturates or “wets out” the reinforcements. The resin bath contains a mixture of resin, most commonly polyester or vinylester, pigments to add color, filler to enhance properties, and a catalyst to aid in curing or to turn it from a liquid to a solid.
Fiberglass reinforced plastic is one of the strongest and most durable materials in the world. Pultrusion is a manufacturing process for producing continuous lengths of fiberglass reinforced plastics shapes with a constant cross section. Surfacing veil is added to give the profile a resin rich surface and enhance the appearance of the final product. The wet out reinforcements now enter the heated pultrusion die. The heat begins the thermosetting reaction process that cures the finished profile. The cured profile is now advanced by a caterpillar style puller to the cut off saw where it will be cut to its final length.
